Product ShowYour Postion：LeYao Engineering Equipment > FV33 single plate check valve

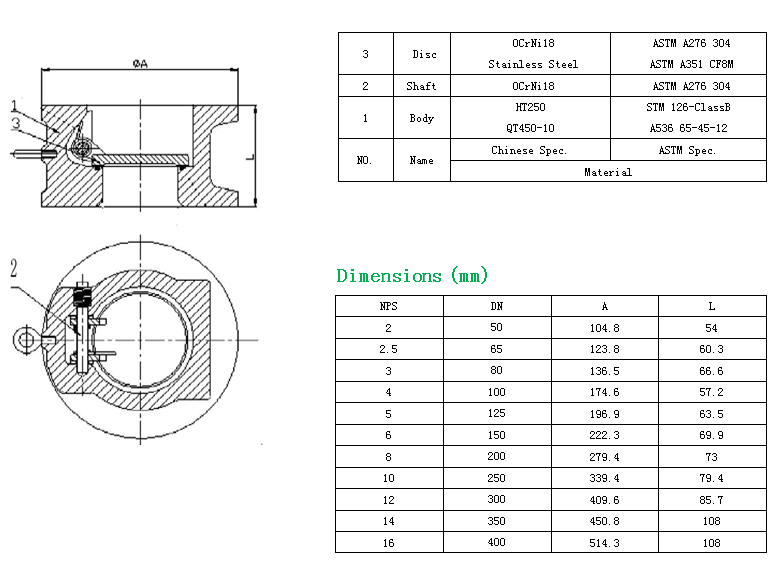

Name：FV33 Single door wafer swing check valve
show：1218
Size：2"-16"
Working pressure: Class125
Flanged standard：ANSI B16.1，ANSI B16.42
Working temperature：-20℃- 120℃
Working pressure: Class125
Flanged standard：ANSI B16.1，ANSI B16.42
Working temperature：-20℃- 120℃
Characteristics:
1、Small Volume, light weight, need less space.
2, Gasket is needed between the flange when install this valve.
3, Install position could be vertical(Flow direction to up) or horizontal.
4, This valve should be install at the outlet side of the pump to prevent medium back flow. It’s a one direction flow valve.
