Product ShowYour Postion:LeYao Engineering Equipment > FV73 series basket filter
Name:FV73 Cast steel Class150
show:1183

Size:1/2"-12" /DN15-DN300


Working pressure: Class150



Flanged standard:ANSI  B16.5

         EN1092-1


Working temperature:-40- 425

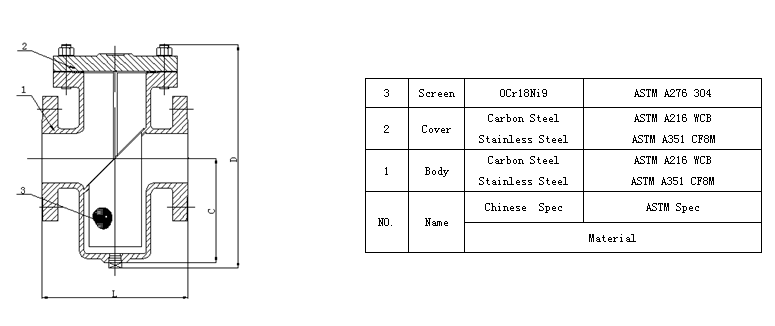

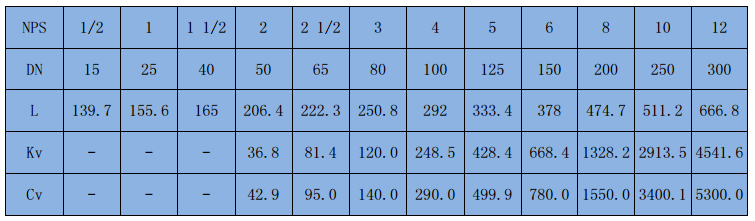

Dimensions (mm)



 Characteristics:

  1,Improved screen design, larger flow area than Y type strainer, lower flow resistance.

  2,Can filter the impurity for long time, no need to replace the screen frequently.

  3,Improve the machining works of the screen seat. The impurities cannot get out from the gap between the screen and seat.

  4,Horizontal installation, screen cover direction up.
