Product ShowYour Postion：LeYao Engineering Equipment > FV73 series basket filter

Name：FV73 Cast iron Class125

show：1659

Size：2"-24" /DN50-DN600

Working pressure: Class125/ PN 16

Flanged standard：ANSI B16.1，ANSI B16.42

EN1092-2，GB/T17241.6

Working temperature：-20℃- 120℃

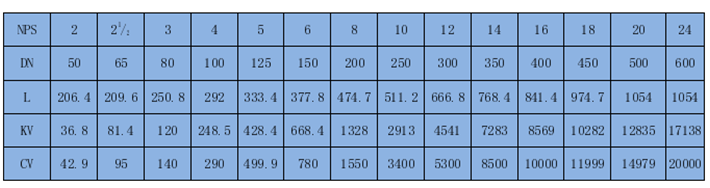

Dimensions (mm)

Characteristics:

1, Improved screen design, larger flow area than Y type strainer, lower flow resistance.

2, Improve the machining works of the screen seat. The impurities cannot get out from the gap between the screen and seat.

3, Horizontal installation, screen cover direction up.
