Working Pressure: Class125/ PN16/ PN 25
Flanged Standard：ANSI B16.1，ANSI B16.42
EN1092-2，GB/T17241.6
Working Temperature：-20℃- 120℃

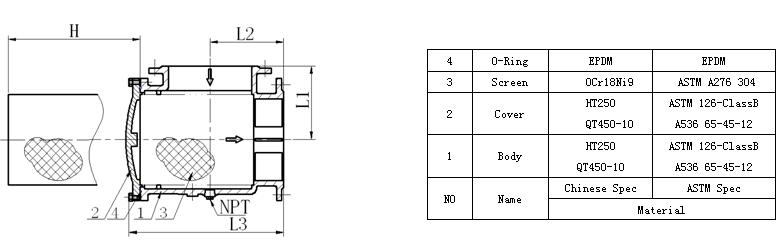

Dimensions (mm)
|
NPS (inletxoutlet) |
2 x1 1/2 |
2 x 2 |
2 1/2 x2 |
2 1/2 x2 1/2 |
3 x 2 |
3 x 2 1/2 |
3 x 3 |
4 x3 |
|
DN (inletxoutlet) |
50x40 |
50x50 |
65x50 |
65x65 |
80x50 |
80x65 |
80x80 |
100x80 |
|
L1 |
114.3 |
114.3 |
127 |
127 |
139.7 |
139.7 |
139.7 |
165 |
|
L2 |
114.3 |
114.3 |
127 |
127 |
114.3 |
139.7 |
139.7 |
165 |
|
L3 |
253 |
253 |
270 |
270 |
252 |
284 |
284 |
334 |
|
H |
125 |
125 |
138 |
138 |
125 |
143 |
143 |
172 |
|
NPT |
3/4“NPT |
1“NPT |
||||||
|
Kv |
64.5 |
64.5 |
109 |
64.5 |
109 |
143 |
143 |
|
|
Cv |
21 |
75.2 |
75.2 |
75.2 |
127.2 |
166.9 |
166.9 |
|
|
NPS (inletxoutlet) |
4x4 |
5 x 4 |
5 x 5 |
6 x 4 |
6 x 5 |
6 x 6 |
8 x 5 |
8 x 6 |
|
DN (inletxoutlet) |
100x100 |
125x100 |
125x125 |
150x100 |
150x125 |
150x150 |
200x125 |
200x150 |
|
L1 |
165 |
190.5 |
190.5 |
203 |
203 |
203 |
192 |
228.6 |
|
L2 |
165 |
190.5 |
190.5 |
165 |
203 |
203 |
228.6 |
203.2 |
|
L3 |
328 |
394 |
394 |
345 |
423 |
423 |
487 |
455 |
|
H |
166 |
223 |
223 |
172 |
250 |
250 |
312 |
250 |
|
NPT |
1“NPT |
|||||||
|
Kv |
252 |
252 |
498 |
252 |
498 |
585 |
498 |
585 |
|
Cv |
294.1 |
294.1 |
581.2 |
294.1 |
581.2 |
682.7 |
581.2 |
682.7 |
|
NPS (inletxoutlet) |
8 x 8 |
10 x8 |
10 x 10 |
12 x8 |
12 x10 |
12 x12 |
14 x10 |
14 x12 |
|
DN (inletxoutlet) |
200x200 |
250x200 |
250x250 |
300x200 |
300x250 |
300x300 |
350x250 |
350x300 |
|
L1 |
228.6 |
279.4 |
279.4 |
280 |
304.8 |
304.8 |
318 |
318 |
|
L2 |
228.6 |
228.6 |
279.4 |
280 |
279.4 |
304.8 |
328 |
328 |
|
L3 |
542 |
539 |
678 |
551 |
678 |
678 |
678 |
678 |
|
H |
355 |
355 |
458 |
315 |
458 |
454 |
460 |
460 |
|
NPT |
||||||||
|
Kv |
910 |
910 |
1480 |
910 |
1480 |
2150 |
1480 |
2150 |
|
Cv |
1062 |
1062 |
1727.2 |
1062 |
1727.2 |
1727.2 |
2509.1 |
|
|
NPS (inletxoutlet) |
14 x14 |
16 x12 |
16 x14 |
16 x16 |
18x14 |
18 x16 |
18x18 |
20x16 |
|
DN (inletxoutlet) |
350x350 |
400x300 |
400x350 |
400x400 |
450x350 |
450x400 |
450x450 |
500x400 |
|
L1 |
318 |
334 |
334 |
334 |
370 |
370 |
370 |
406 |
|
L2 |
328 |
364 |
364 |
364 |
389 |
389 |
389 |
428 |
|
L3 |
678 |
745 |
745 |
745 |
785 |
785 |
785 |
849 |
|
H |
460 |
522 |
522 |
522 |
562 |
562 |
562 |
612 |
|
NPT |
1 1/4“NPT |
|||||||
|
Kv |
3100 |
2150 |
4050 |
3100 |
4050 |
4900 |
4050 |
|
|
Cv |
3617.7 |
2509.1 |
3617.7 |
3617.7 |
4726.4 |
5718.3 |
4726.4 |
|
|
NPS (inletxoutlet) |
20x18 |
20x20 |
24x18 |
24 x20 |
24 x24 |
|
DN (inletxoutlet) |
500x450 |
500x500 |
600x450 |
600x500 |
600x600 |
|
L1 |
406 |
405 |
470 |
470 |
470 |
|
L2 |
428 |
428 |
480 |
480 |
480 |
|
L3 |
849 |
849 |
974 |
974 |
974 |
|
H |
612 |
612 |
720 |
720 |
720 |
|
NPT |
1 1/4“NPT |
1 1/2“NPT |
|||
|
Kv |
4900 |
5950 |
4900 |
5950 |
|
|
Cv |
5718.3 |
6954.2 |
5718.3 |
6954.2 |
|
Characteristics:
1. Commonly used at the pump suction side, not only to filter the impurities, but also replace the elbow, strainer and straight pipe ahead of the pump suction side, can reduce the cost.
2. Because the suction side and discharge side could have different flanges, it can replace the different diameter elbow.
3. Large open area, large drain outlet, can drainage and flushing easily, so as to reduce the maintenance.
4. Discharge outlet has unique straight guide vane, can reduce the damage of the vortex flow to the pump and the system
