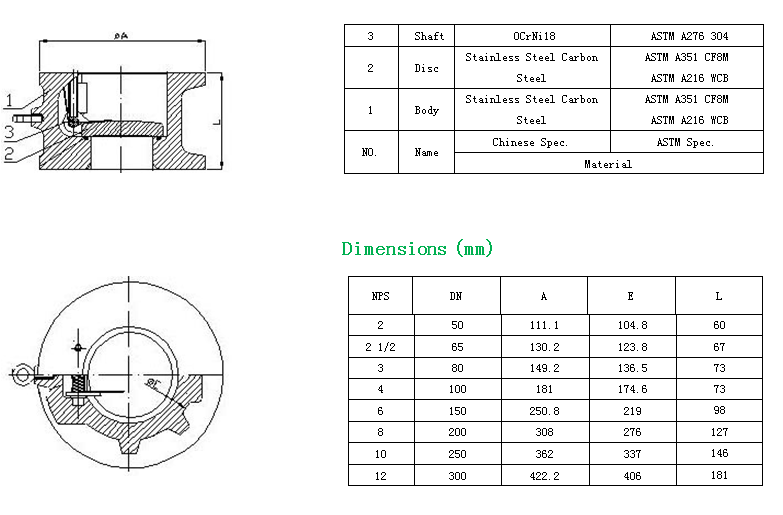

Name：FV33 cast steel single plate check valve
show：1225
Size：2"-12" /DN50-DN300
Working pressure: Class 150
Flanged standard：ANSI B16.6，EN1092-1
Working pressure: Class 150
Flanged standard：ANSI B16.6，EN1092-1
Working temperature：-20℃- 120℃
Characteristics：
1, Small Volume, light weight, need less space.
2, Gasket is needed between the flange when install this valve.
3, Install position could be vertical(Flow direction to up) or horizontal.
4, This valve should be install at the outlet side of the pump to prevent medium back flow. It’s a one direction flow valve.
